Placa de baza ASRock A520M-HVS, Socket AM4, DDR4, Micro-ATX
Placa de baza AsRock A520M-HVS AM4 Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors 6 Phase Power Design Supports DDR4 4733+ (OC) 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 Graphics Output Options: D-Sub, HDMI 7.1 CH HD Audio (Realtek ALC887 Audio Codec) 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3) 6 x USB 3.2 Gen1(4 x Rear, 2 x Front) 6 x USB 2.0(2 x Rear, 4 x Front) Realtek Gigabit LAN https://www.asrock.com/MB/AMD/A520M-HVS/index.asp
Placa de baza ASRock B550M-HDV, Socket AM4, DDR4, Micro-ATX
Placa de baza AsRock B550M-HDV AM4 Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors 6 Power Phase Design Supports DDR4 4733+ (OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: HDMI, DVI-D, D-Sub 7.1 CH HD Audio (Realtek ALC887 Audio Codec) 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3) 6 USB 3.2 Gen1 (2 Front, 4 Rear) Gigabit LAN https://www.asrock.com/MB/AMD/B550M-HDV/index.asp#Specification
Placa de baza ASRock B550M-P, Socket AM4, DDR4, Micro-ATX

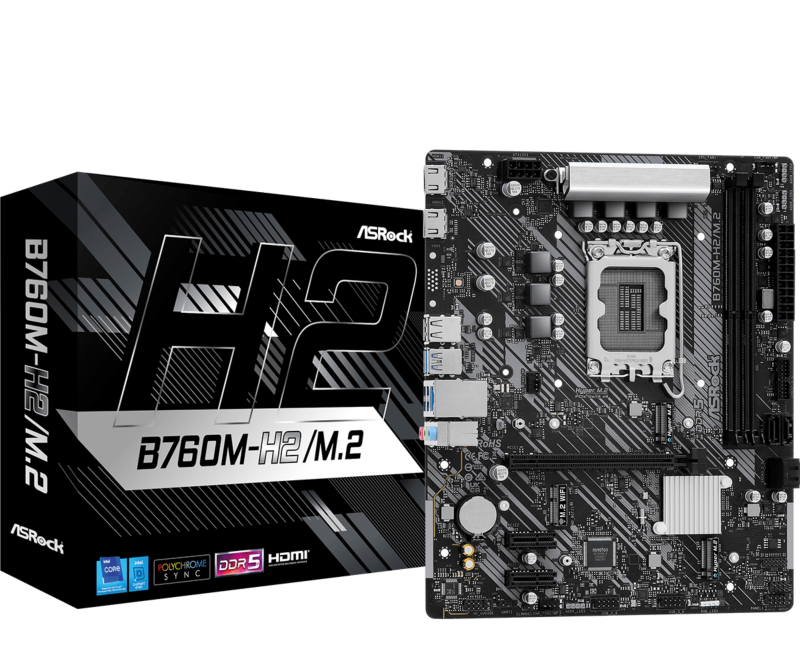

Placa de baza ASRock B760M-H2/M.2, Socket 1700, DDR5, Micro-ATX
Placa de baza ASRock B760M-HDV/M.2 D4, Socket 1700, DDR4, Micro-ATX
Placa de baza ASUS PRIME A520M-K, Socket AM4, DDR4, Micro-ATX
Placa de baza Asus PRIME A520M-K Socket LGA AM4 CPU Build in AMD AM4 Socket Processors * * Refer to www.asus.com for CPU support list Chipset AMD A520 Memory 2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733 (O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. Graphic 1 x D-Sub 1 x HDMI 2.1(4K@60HZ) Expansion Slots 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 Storage Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Realtek RTL8111H 1Gb Ethernet ASUS LANGuard Audio Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack- retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers https://www.asus.com/Motherboards/PRIME-A520M-K/specifications/

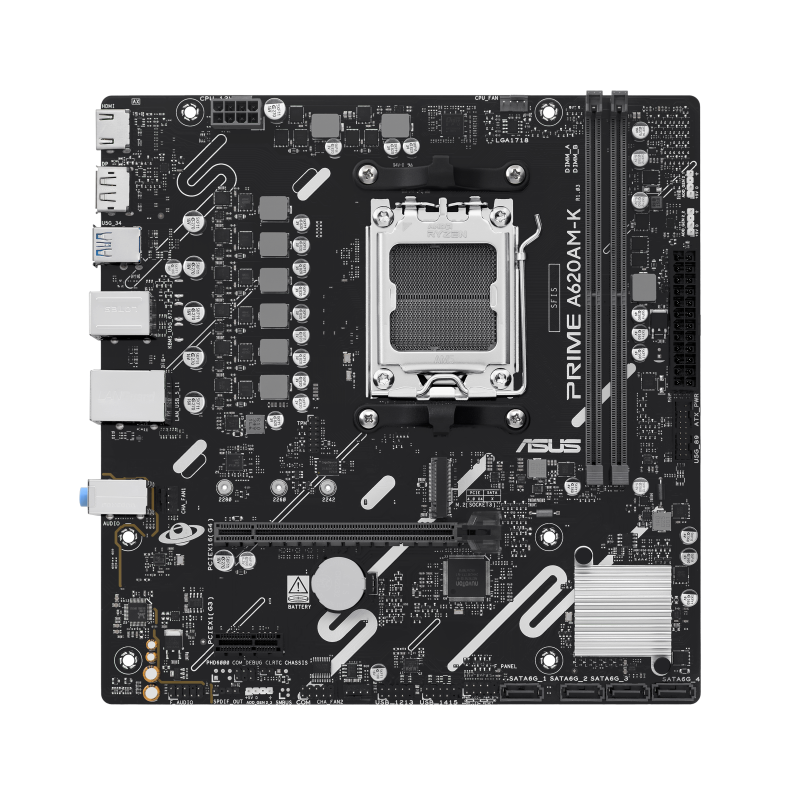

Placa de baza ASUS PRIME A620AM-K, Socket AM5, DDR5, Micro-ATX
Placa de bazaASUS PRIME A620AM-K. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Placa de baza ASUS PRIME B760M-K, Socket 1700, DDR5, Micro-ATX
Placa de baza ASUS PRIME B860M-K, LGA 1851, DDR5, Micro-ATX
Placa de bază ASUS PRIME H610M-R D4 LGA1700
Placa de baza Asus PRIME H610M-R D4 LGA 1700 Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot Realtek 1 Gb Ethernet, HDMI®,D-Sub, DVI USB 3.2 Gen 1 ports, SATA 6 Gbps COM header, LPT header, TPM header Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Comprehensive cooling: PCH heatsink Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 5X Protection III: Multiple hardware safeguards for all-round protection
Placa de baza ASUS TUF GAMING B760M-PLUS II, LGA 1700, DDR5, Micro-ATX
Placa de baza Gigabyte A520M DS3H V2, Socket AM4, DDR4, Micro-ATX

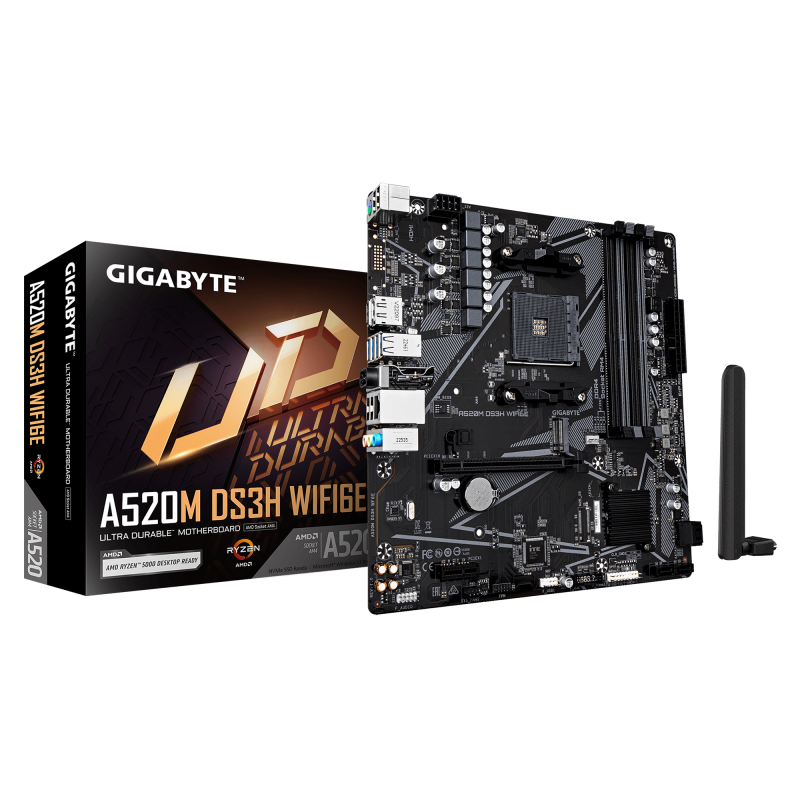

Placa de baza Gigabyte A520M DS3H WIFI6E, Socket AM4, DDR4, Micro-ATX

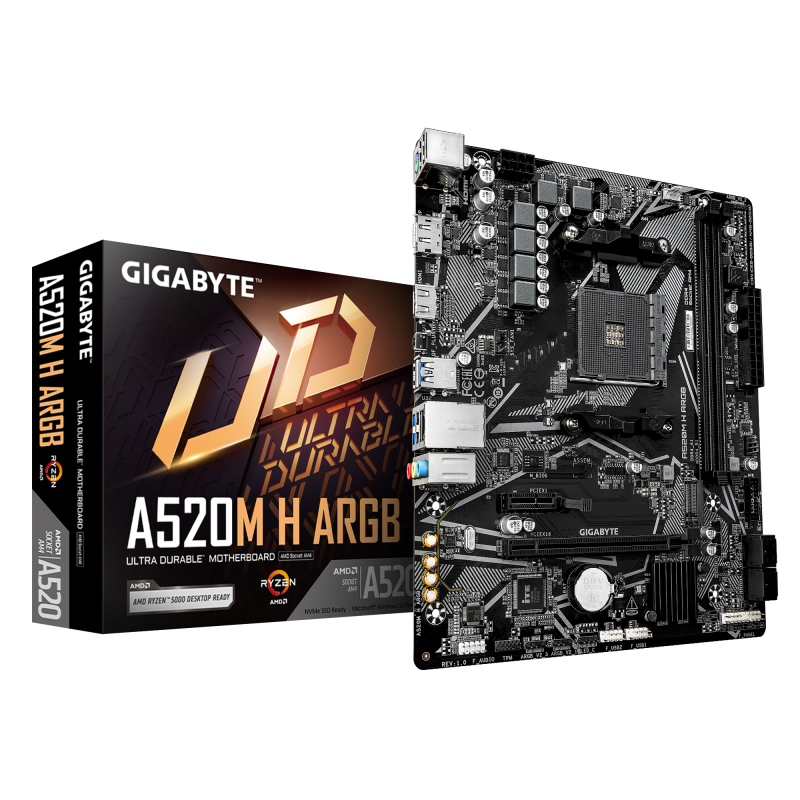

Placa de baza Gigabyte A520M H ARGB, Socket AM4, DDR4, Micro-ATX
GIGABYTE A520M H ARGB. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, AMD Ryzen PRO 3000 Series,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Placa de baza Gigabyte A520M S2HP, Socket AM4, DDR4, Micro-ATX
Placa de baza Gigabyte A620M DS3H, Socket AM5, DDR5, Micro-ATX
Placa de baza Gigabyte A620M GAMING X, Socket AM5, DDR5, Micro-ATX
Placa de baza Gigabyte A620M H, Socket AM5, DDR5, Micro-ATX
Placa de baza Gigabyte A620M S2H, Socket AM5, DDR5, Micro-ATX

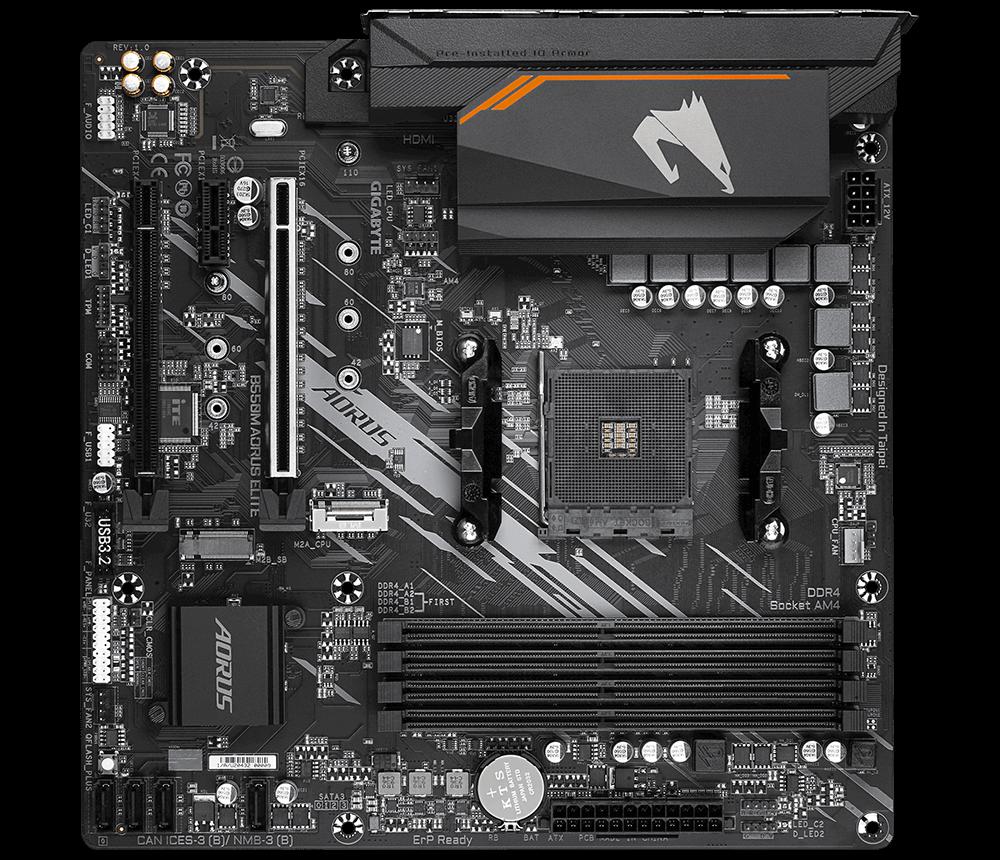

Placa de baza Gigabyte B550M AORUS ELITE, Socket AM4, DDR4, Micro-ATX
Placa de baza Gigabyte AMD B550M AORUS ELITE, 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks Micro ATX Form Factor
