Lifecycle
- Obsolete Date 31-12-2099
- End of support date 31-12-2104
Specifications
- Operating temperature Maximum of 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate by 1°C for every 1000 ft (305m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
- Management features Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
- Power supply Fixed power supply
- Fans Fixed fans
- Shipping Weight 11.07 lbs
- Shipping dimensions 1.73 x 17.4 x 12.0 in
- Shipping Weight 5.0 kg
- Shipping dimensions 4.4 x 44.2 x 30.5 cm
- Switching capacity 176 Gbps
- Ports 48 x 10/100/1000BASE-T ports 4 x 1G/10G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
- Latency 1 Gbps: 1.9 μSec , 10 Gbps: 1.8 μSec
- Memory and processor Dual Core ARM Cortex A9 @ 1016 Mhz 4 GB DDR3, maximum, depending on model 16 GB eMMC
- Input voltage 100–127 VAC / 200–240 VAC
- PoE capability 370W Class 4 PoE/PoE+
- Throughput 98.6 Mpps
- Power consumption Max. Power (w/o PoE): 45W Max. Power (w/ PoE): 480W
- Warranty Limited lifetime warranty. See the warranty duration.
Quickspecs
Overview

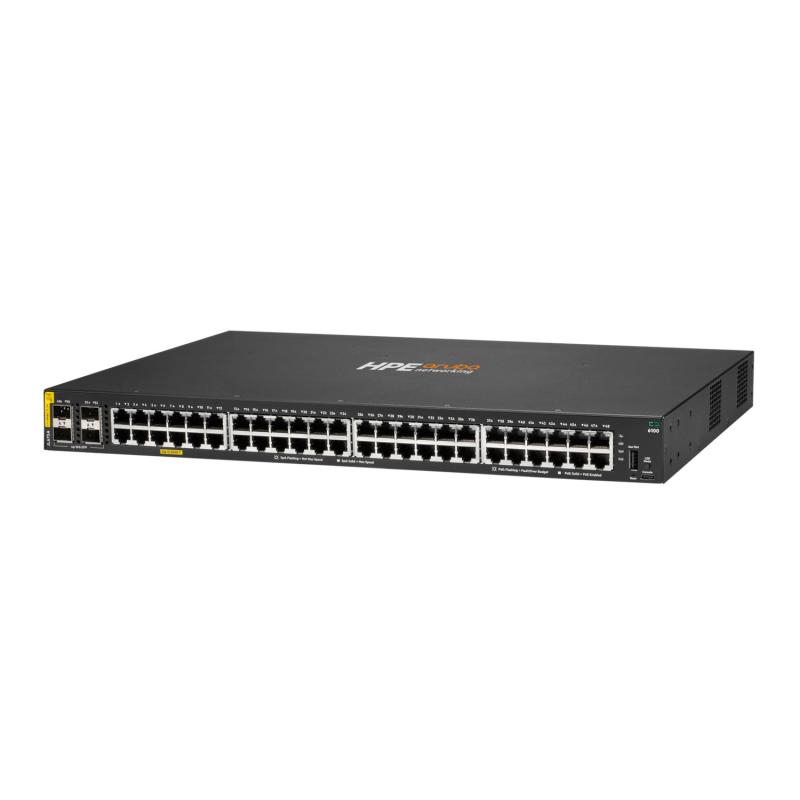

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry-level access switches ideal for branch offices, mid-market enterprises, and SMB networks. Designed for reliable, simple, and secure access, this switch family provides a convenient wired access solution for enterprise networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System to deliver a more consistent, more efficient operator experience. This Layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12-port model is ideal for use in quiet workspaces. With robust quality of service (QoS), support for static routing, and IPv6, these switches also simplify ownership with no switch software licensing requirements.
What’s new
- The CX 6100 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry-standard CLI
- It offers scalability with a 6-member switch virtual switching framework (VSF) stacking
- The CX 6100 series provides right size with 12, 24, and 48-port 1U models with convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE
- It has compact and fan-less 12-port PoE model for space-constrained deployments
- It simplifies IT operations with next-gen Layer 2 switch series that provides entry-level, reliable, and convenient wired access connectivity
Features
The CX 6100 series is ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.
It has the flexibility to mix 24 and 48-port modular and fixed CX 6100 models.
It has a simplified configuration and management as the switches act as a single chassis when stacked.
It support for up to six switches (or members) in a stack through chain or ring topology.
It offers the flexibility to create stacks that span longer distances such as hundreds of meters across campuses to kilometers between sites.
It offers virtual switching framework (VSF) stacking – Scale and simplicity
The CX 6100 series provides right-size deployment with choice of 12, 24, and 48-port 1U models with convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE.
The four built-in wire speed 1/10GbE uplinks mitigate bottlenecks at the access layer where users and devices connect.
It has fully-managed enterprise-class switches deliver Layer 2 capabilities with support for static routing, access control lists (ACLs), robust quality of service (QoS), traffic prioritization, sFlow®, and IPv6.
The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high-speed uplinks and optional PoE to provide entry-level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
The switch series delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System (AOS-CX) used across HPE Aruba Networking CX switching platforms.
It reduces manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA).
The switch series offers unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
Entry-level Layer 2 access switches
Simplified configuration and management
It has up to 740W IEEE 802.3at Class 4 PoE with up to 30W per port supports newer Wi-Fi 7 and PoE devices.
The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy-to-use web GUI, or industry-standard CLI.
AI-ready performance and power
It simplifies ownership with no switch software licensing or subscriptions required.
The HPE Aruba Networking CX 6100 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and adaptive power consumption needed for AI, Wi-Fi 7, and Internet of Things (IoT) requirements.
