Lifecycle
- Obsolete Date 31-12-2099
- End of support date 31-12-2104
Specifications
- Mounting Ceiling/Wall-mount clip
- Warranty Instant On 2-year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products.
- Connectivity, standard Ultra-fast 802.11ax
- Input voltage Power over Ethernet (PoE): 802.3af (class 3) DC power (12V) Note: Power sources are sold separately unless you purchase the bundle SKU
- Power consumption Max power consumption: 10.1W (PoE), 8.8W (DC)
- Wi-Fi antenna Antennas: Down-tilt Dual Omni-directional 2×2 MIMO Antenna Gain: 4.9 dBi in 2.4 GHz 5.7 dBi in. 5 GHz Maximum transmit power: 5 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain) 2.4 GHz band: +20 dBm (+17 dBm per chain, 3 dB MIMO gain)
- Radio coverage Dual-radio 802.11ax 2×2 5 GHz/2.4 GHz MIMO
- Product dimensions (imperial) 1.5 x 6.3 x 6.3 in
- Product dimensions (metric) 37x 160 x 160 mm
- Weight 1.1 lb
- Ports 1 GbE BaseT Uplink DC Power Connector Bluetooth Low Energy (BLE) LED status Indicators Reset/LED control button Kensington security slot.
- Certifications Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
- Weight 500 g
Quickspecs
Overview

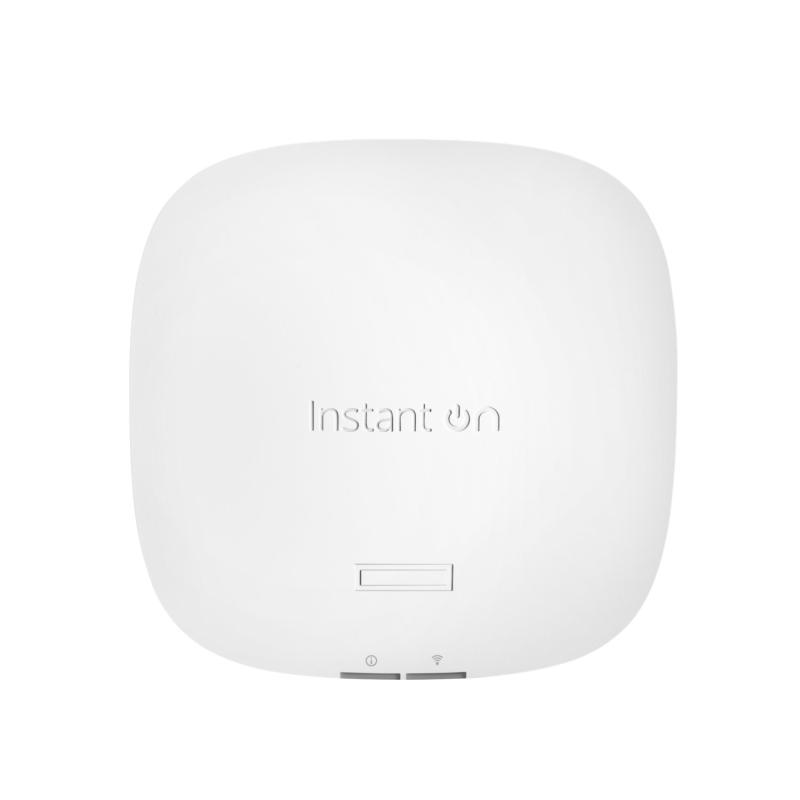

HPE Networking Instant On Access Points AP22 delivers affordable, business-grade 802.11ax Wi-Fi for high performance, high density small business environments. Business-grade capabilities are designed to meet the growing number of mobile, IoT, and security needs. The compact form factor of the AP22 delivers multi-user capabilities and a maximum aggregate peak data rate of 1.2 Gbps for high-definition video streaming and cloud application requirements. Everything from mounting hardware to easy-to-use web and mobile app management tools, and business-grade software features are included; no extra charge or need for external controllers.
What’s new
- Wi-Fi 6 for high performance and efficiency
- Supports up to 75 associated clients
- Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access
Features
Gain insights into customers with third party captive portal integration with partners like Skyfii, Purple, Aislelabs, and Wavespot.
Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.
HPE Networking Instant On Access Points AP22 comes with integrated router, gateway, and firewall functionality.
HPE Networking Instant On Access Points AP22 comes with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.
Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open
Conveniently expands your network to hard-to-wire areas – nearly eliminating spotty connections and dead zones, providing Wi-Fi where you need it.
HPE Networking Instant On Access Points AP22 have built-in wireless mesh capabilities to cost-effectively extend Wi-Fi connectivity without additional cables.
Reduce High Cost of Cabling with Full-scale Wireless Mesh Coverage
Incredible Efficiency with Wi-Fi 6
HPE Networking Instant On Access Points AP22 includes an easy-to-use web GUI and templates; access points are simple to deploy and are up and running in minutes.
HPE Networking Instant On Access Points AP22 supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and bi-directional MIMO (MIMO).
HPE Networking Instant On Access Points AP22 support features Target Wake Time (TWT) that help establish a schedule when clients need to communicate with an AP.
HPE Networking Instant On Access Points AP22 are ideal for single or distributed small business sites such as graphic design firms, cafés, restaurants, and other Wi-Fi hotspots.
Simple to build landing page allows customization of your guest access page with your own brand and logo.
Creates a Custom Guest Access Experience
Block undesired applications and websites with greater traffic visibility without the need for any external gateway or additional costs; the control is at your fingertips.
Compatible products
- HPE Networking Instant On 12V/18W Power Adaptor US EU
- HPE Networking Instant On 802.3af 15.4W POE Midspan Injector
- HPE Aruba Networking AP-MNT-W4 White Low Profile Basic AP Flat Surface Mount Kit
- ARUBA INSTANT ON 12V POWER ADAPTER RW
- HPE Aruba Networking Foundational Care 3Y NBD Exch Instant ON Access Point SVC
- HPE Networking Instant On AP22 Flush Mount Sleeve
